Athena-s3
Athena-s3
Our Athena-s3 is a great addition to any packaging line or for any company looking to increase packaging throughput.
Our Athena-s3 packaging machine is made locally in Las Vegas, Nevada and we offer local and remote support for all our systems.
The Athena-s3 was designed with the operators in mind with the easy to use HMI Touchscreen you can easily store recipes and setup new recipes for other products.

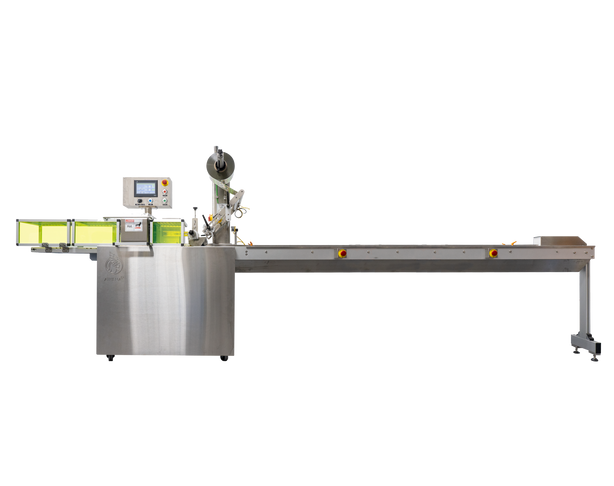

Our Athena-s3 is available in three length options: 5ft, 10ft & 15ft and also available as a single jaw unit (Up to 100 ppm) or Dual Jaw unit (Up to 200 ppm).
Our systems can be tailored to your current needs and can easily be integrated to any existing line or give you the flexibility to automate further in the future.
The Athena-s3 packaging machine is ideal for any Bakery, Co-packer, Print or anyone in between!

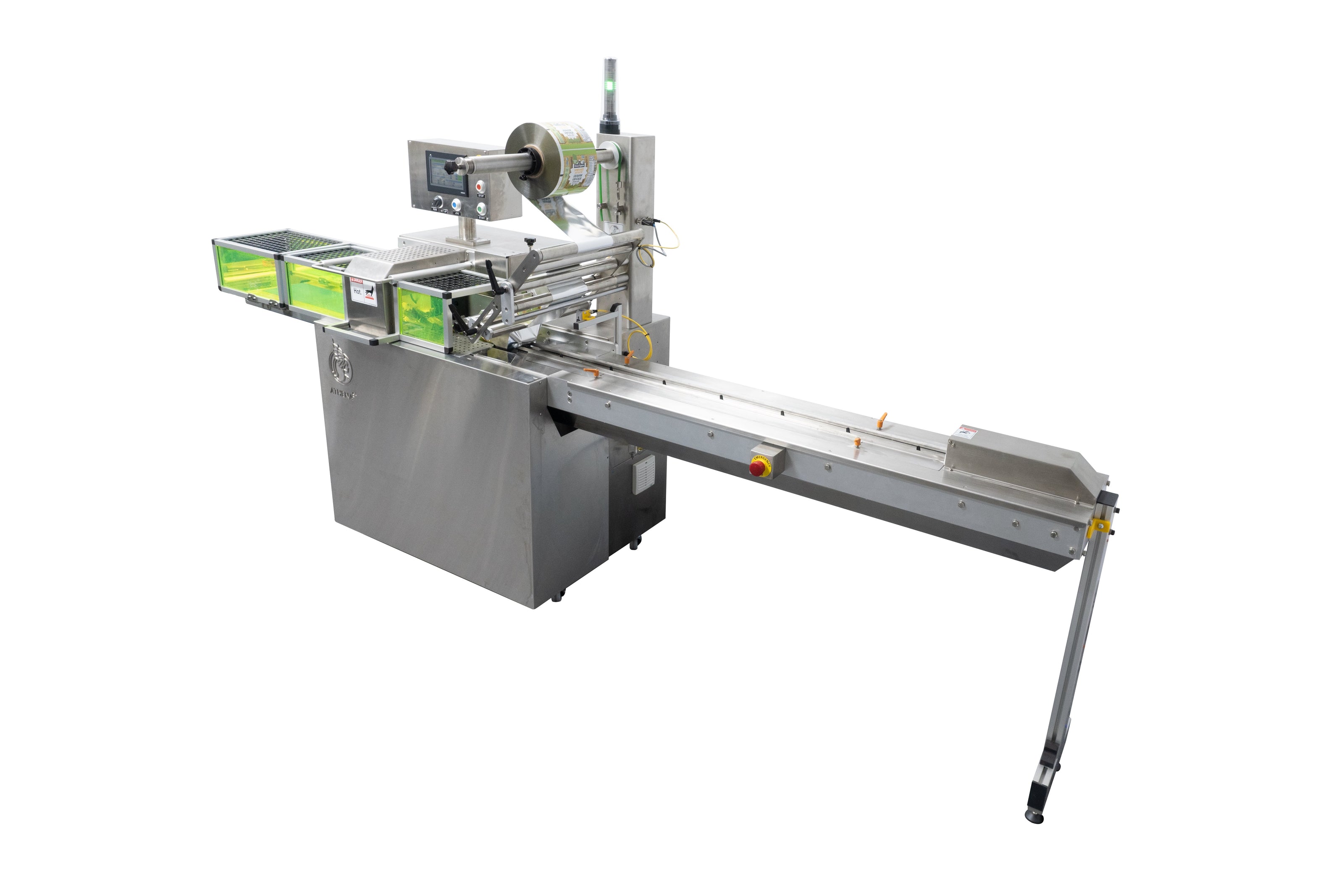

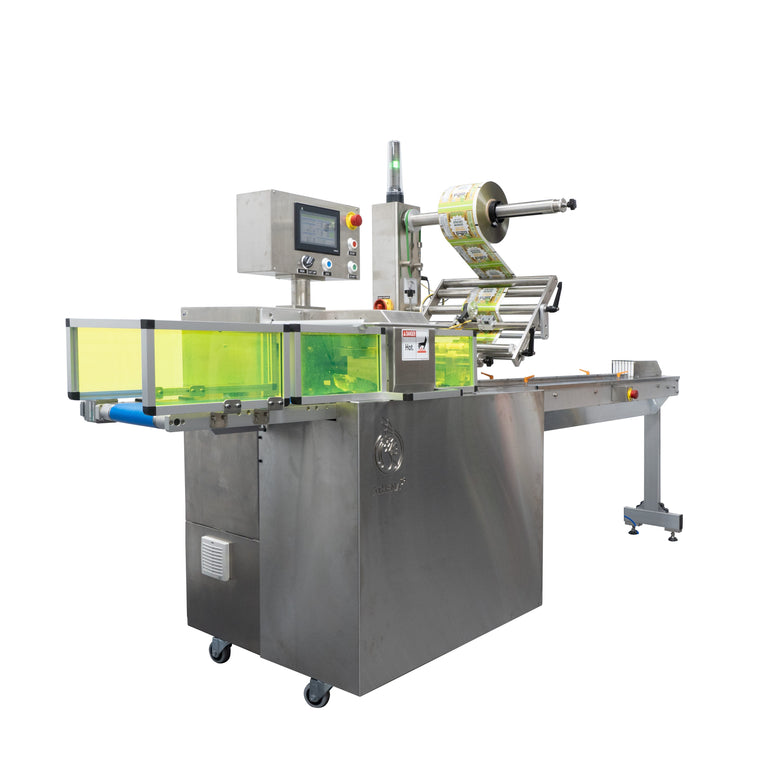

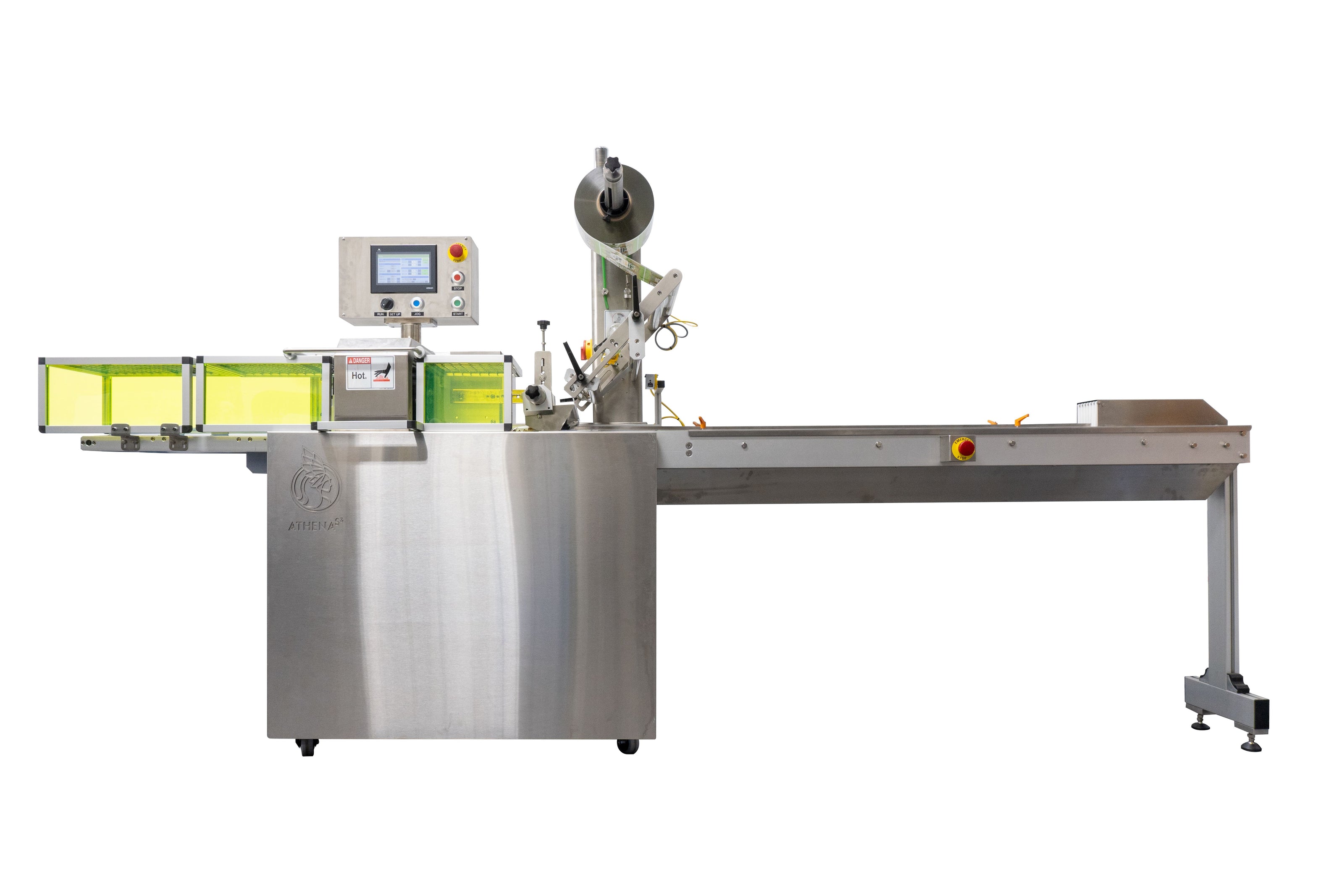

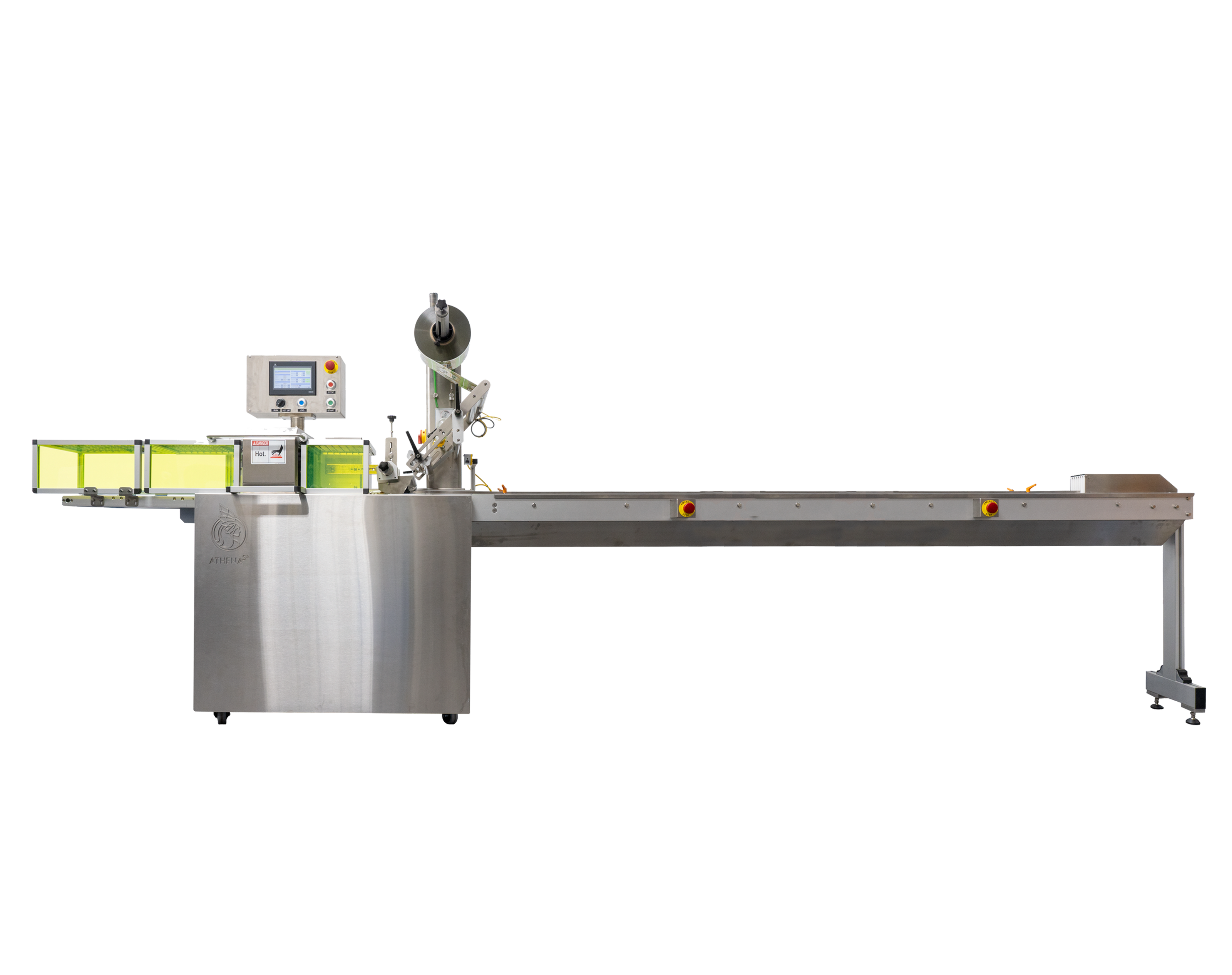

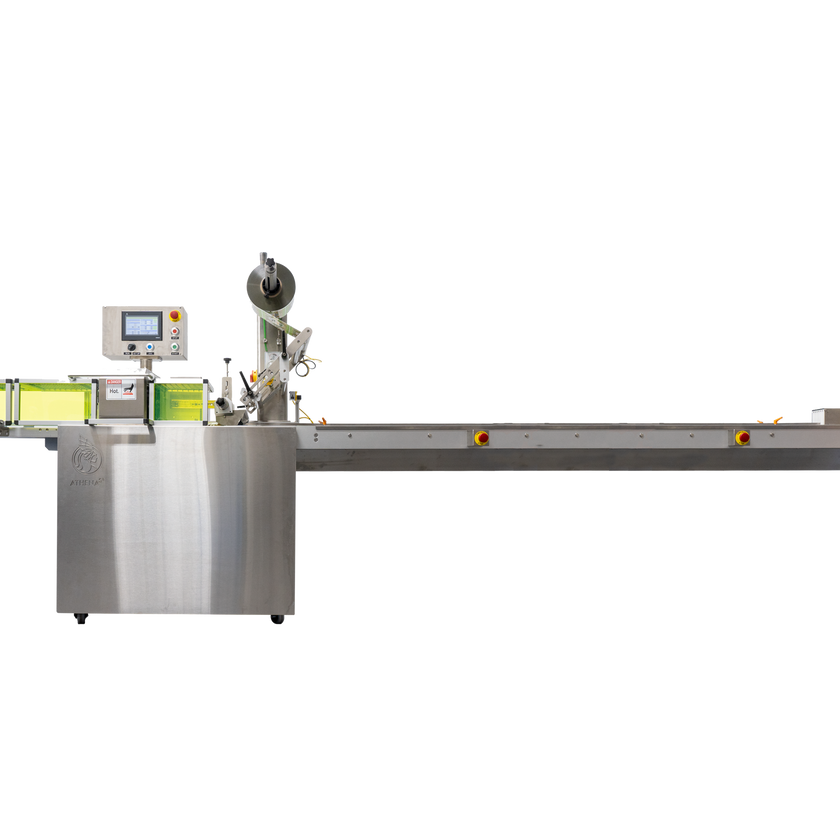

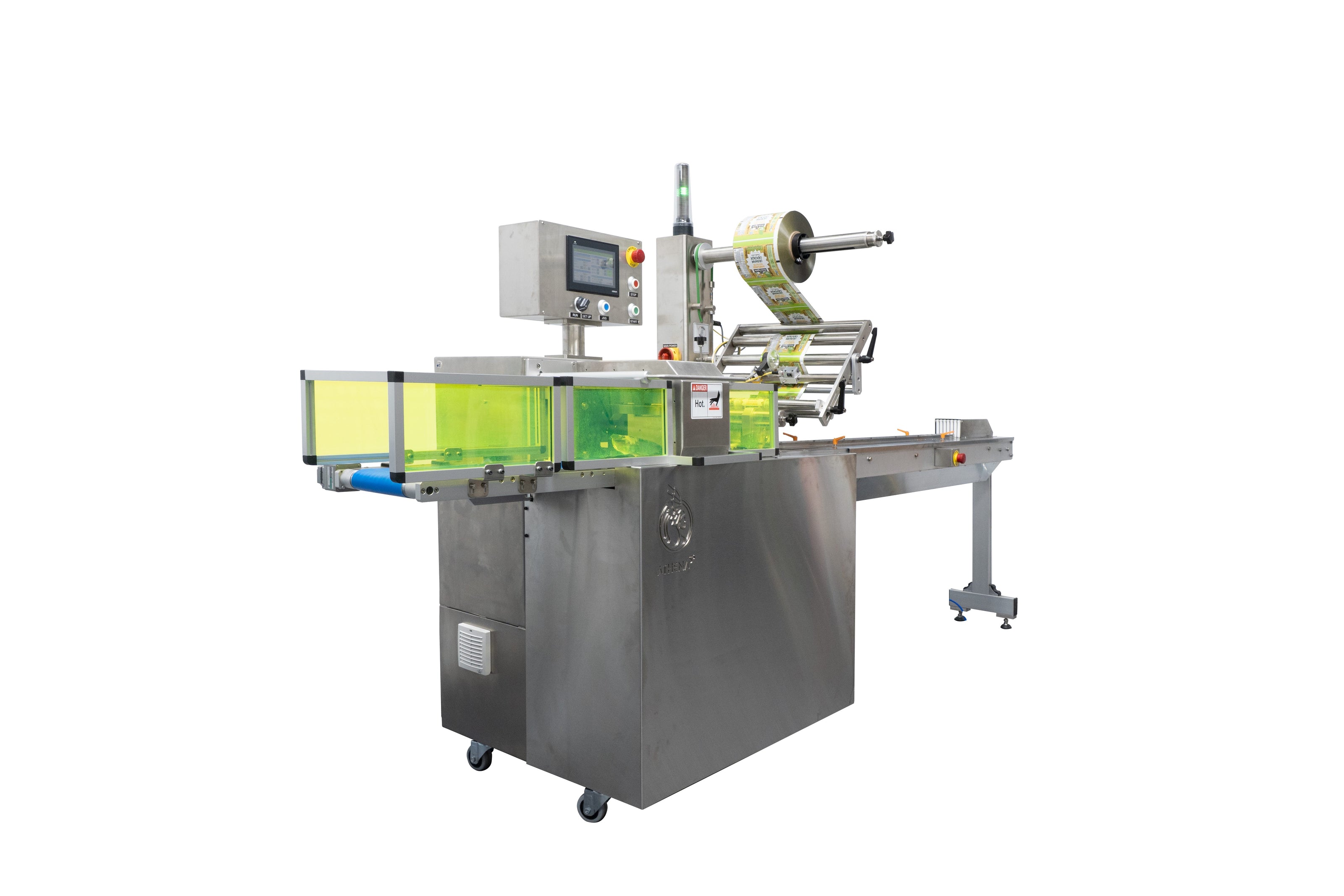

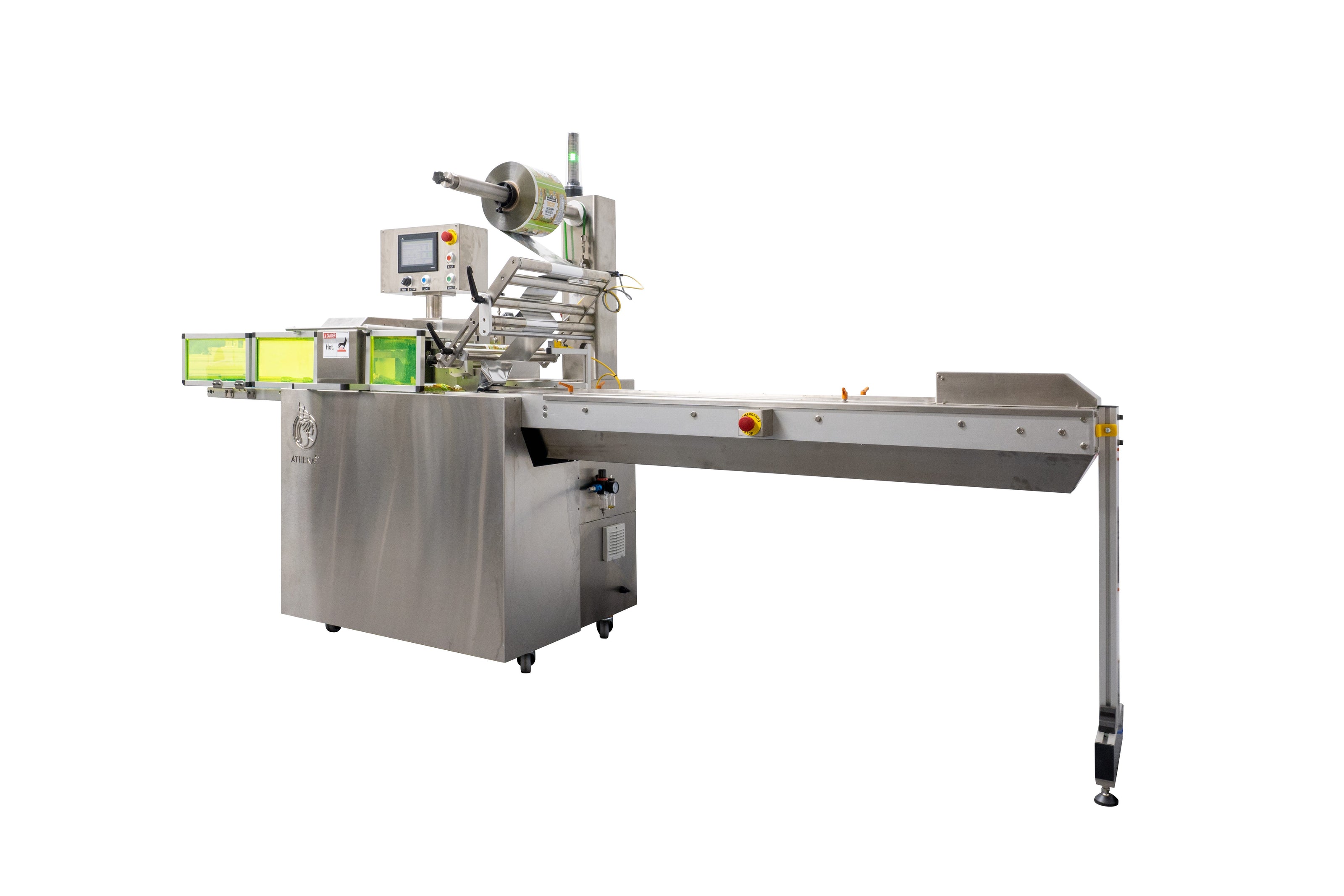

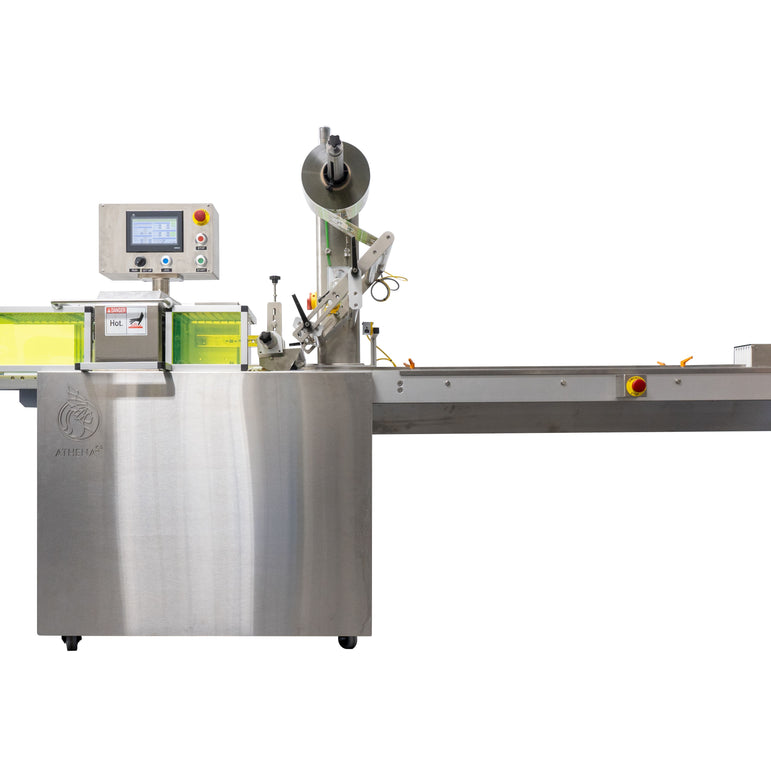

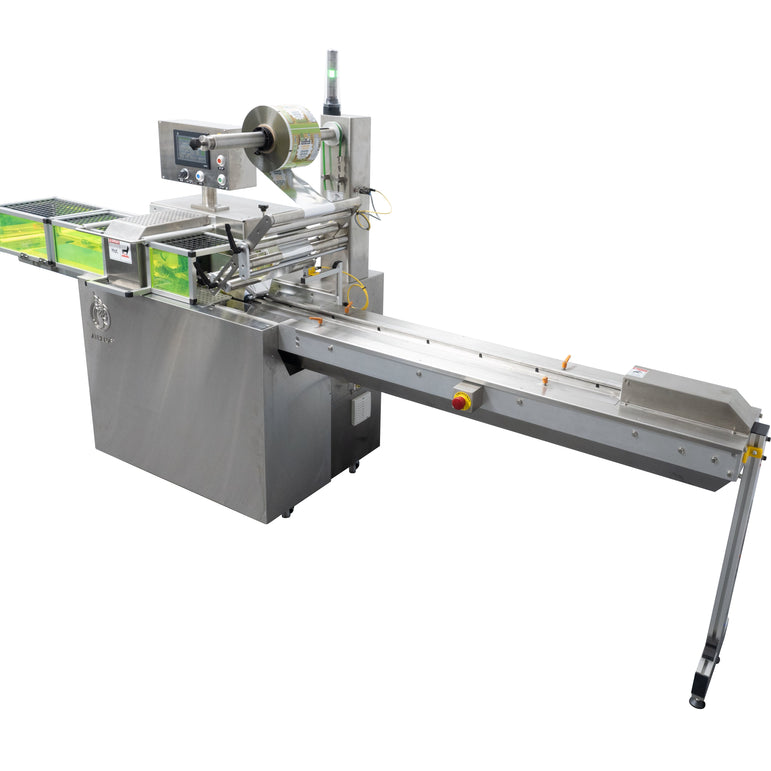

ATHENA S3 — Horizontal Flow Wrapper
Made in the USA
🏗 Construction & Design
| Feature | Description |
|---|---|
| Full 304 Stainless Steel Frame | Durable, hygienic construction ideal for food environments |
| 5.5 ft Lugged Infeed | Smooth, consistent product handling |
| 144 mm Jaw Centrex | Supports product heights up to 4.5” |
| Dual-Jaw System | Cross-serration jaws aligned parallel to the knife |
| 18” Film Reel Mount | Compatible with standard film sizes |
| Easy-Thread Film Path | Simplifies roll changes and film routing |
🔥 Sealing & Temperature Control
| Feature | Description |
|---|---|
| Fin Seal Rollers | Cold first pair, hot second pair for optimal seal formation |
| Dual Temperature-Controlled Jaws | Temperature managed directly through HMI |
| SAT — Self Adjusting Temperature | Dynamic temperature control adjusts automatically with speed |
| APC — Athena Power Conserve | Energy-efficient operation |
| NPNB — No Product, No Bag | Eliminates waste by preventing empty packages |
🧠 Controls & Automation
| Feature | Description |
|---|---|
| Up to 99 Product Presets | Quick changeovers and consistent performance |
| Recipe Management | Stores temperature, speed, and setup profiles |
| Omron PLC | Industrial-grade controller for reliability |
| 3-Axis Coordinated Servo System | Smooth, precise motion control |
| 7” Omron Touchscreen HMI | Intuitive interface for operators |
| EWON Cozy Remote Access | Secure VPN for remote diagnostics & support |
⚡ Performance
| Feature | Description |
|---|---|
| Up to 300 Packs/Minute | Speed depends on product size & film type |
| High Repeatability | Designed for accuracy and minimal downtime |
